B120MCT-SP400

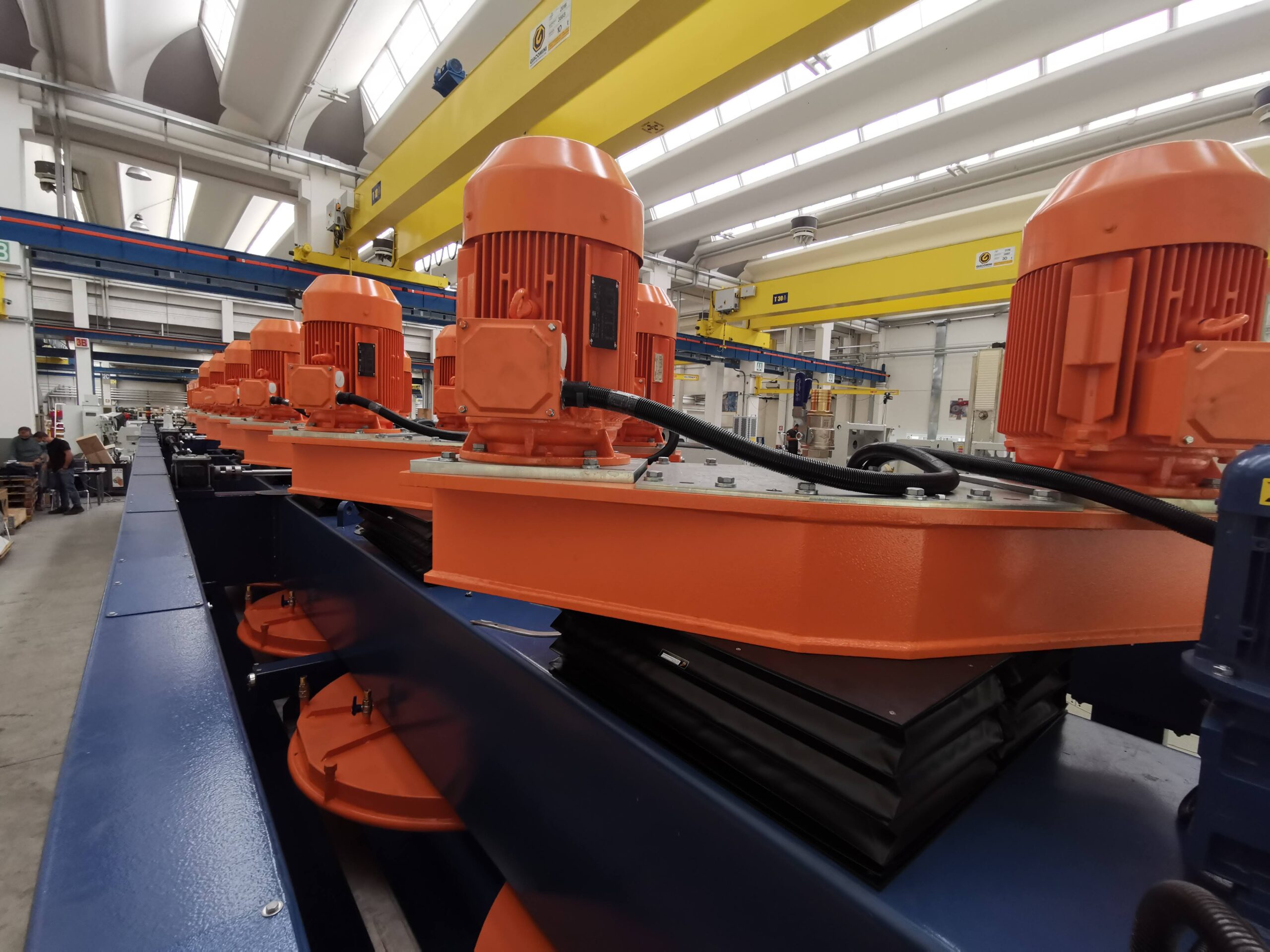

Automatic machine for Calibrating and Grinding of blocks and pavers through calibrating spindle heads equipped with diamond tools. Available in dry or wet mode.

Operating thickness range: 30 ÷ 400 mm
Operating Processing width : 1200mm
Calibrating plates diameter: 1300mm

• Double height adjustment of the machine bridge (1st step) and of the spindle shaft (2nd vertical positioning optimization step)
• Strong lower frame with anti-wear steel plates to reduce consumption due to belt slip
• Upper bridge engineered to reduce heads vibrations and noise, increasing the calibrating efficiency

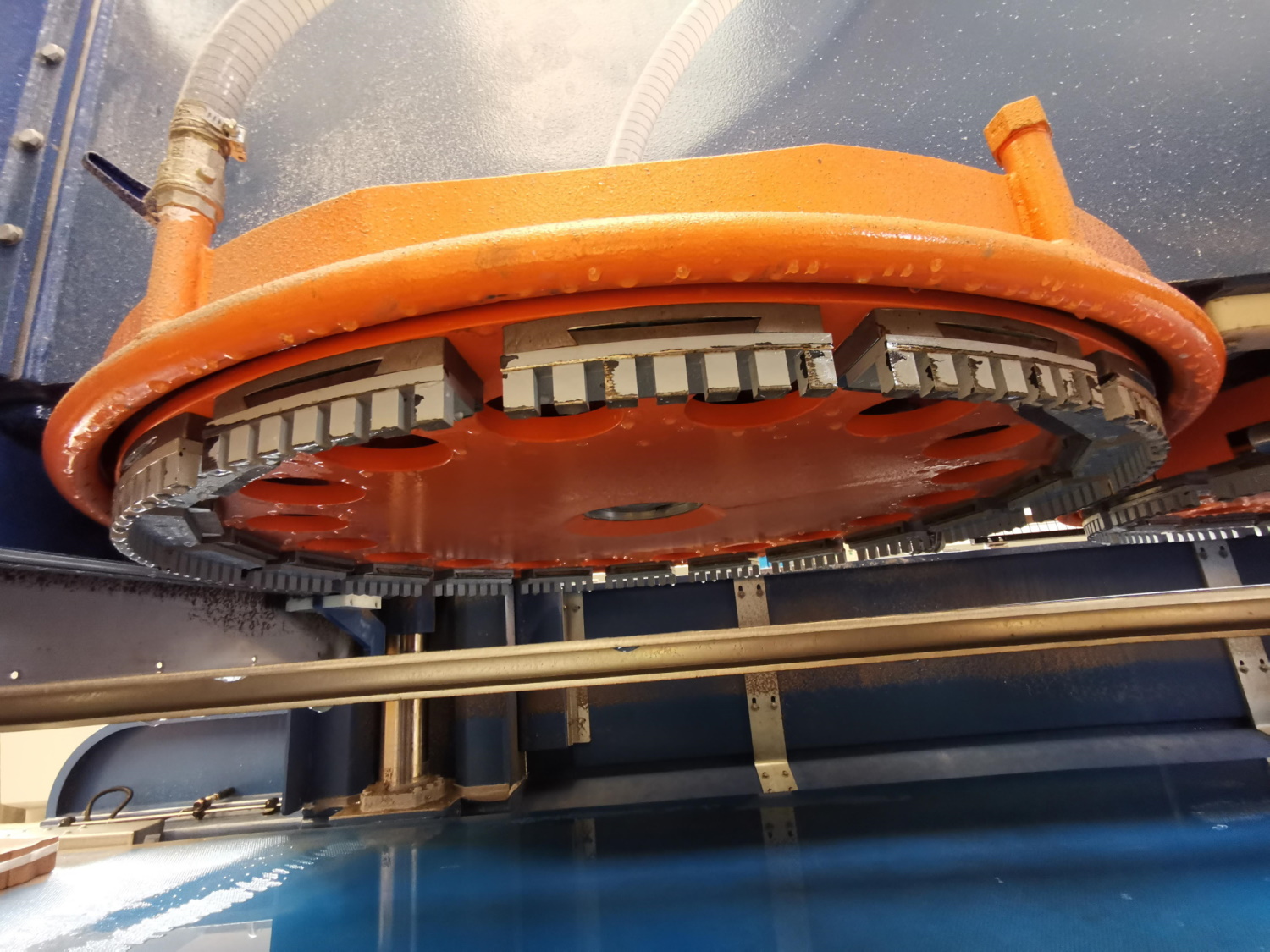

• Heads designed for the use of diamond segments
• Calibrating head for diamond plate with gradual start motorization
• Pneumatic vertical height movement and motorized centesimal adjustment with displayed quota
• Automatic lifting device when the belt stops and return to the working position with restarting
• Heads equipped with an inverter drive to optimize the rotation speed of the calibrators according to the different types of tools and materials to process
• Tools cooled with water flowing in the centre of the spindle (for wet machine only)
• Water feeding system for a dedicated and optimum cooling of the diamonds with centrifugal distribution (for wet machine only)
• Conveyor belt with electronic speed adjustment displayed on the control panel
• Sensors for belt stop in the absence of the workpieces
• Lateral side guides for tiles manually adjustable
• Safety covers for the heads access crash proof, oxidation proof and ergonomically shaped
• Doors ensure clean and efficient tools change
• Steel structures multi-layer painted to avoid corrosion and rust
• Touch screen main control panel
• TE.SE.O. (Tele service OCEM) to connect the machine with our after sale service in real time
