OB1

Mod. OB1-4/250/400/750 for the preparation by weight of the 1st layer of double-layer tiles or the mix for single-layer tiles.

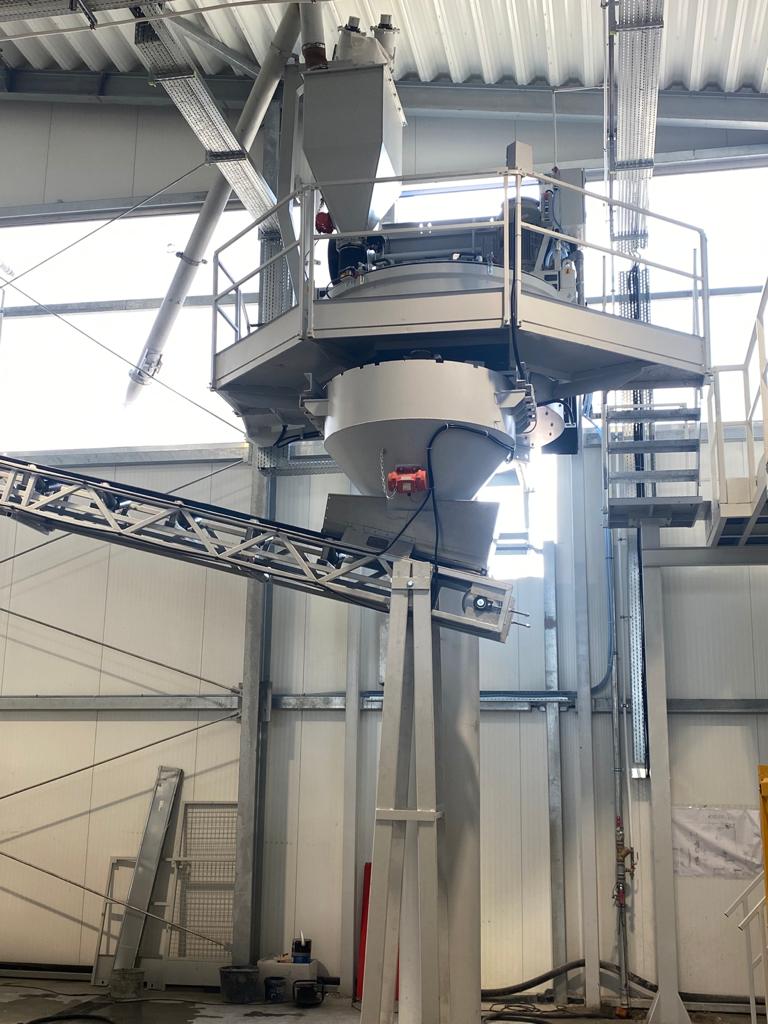

• Planetary mixer with 250/400/750 litre capacity
• Raw material loading skip
• No. 1 or 2 augers for transporting cement from the silos to the mixer
• Mixer mounted on steel structure

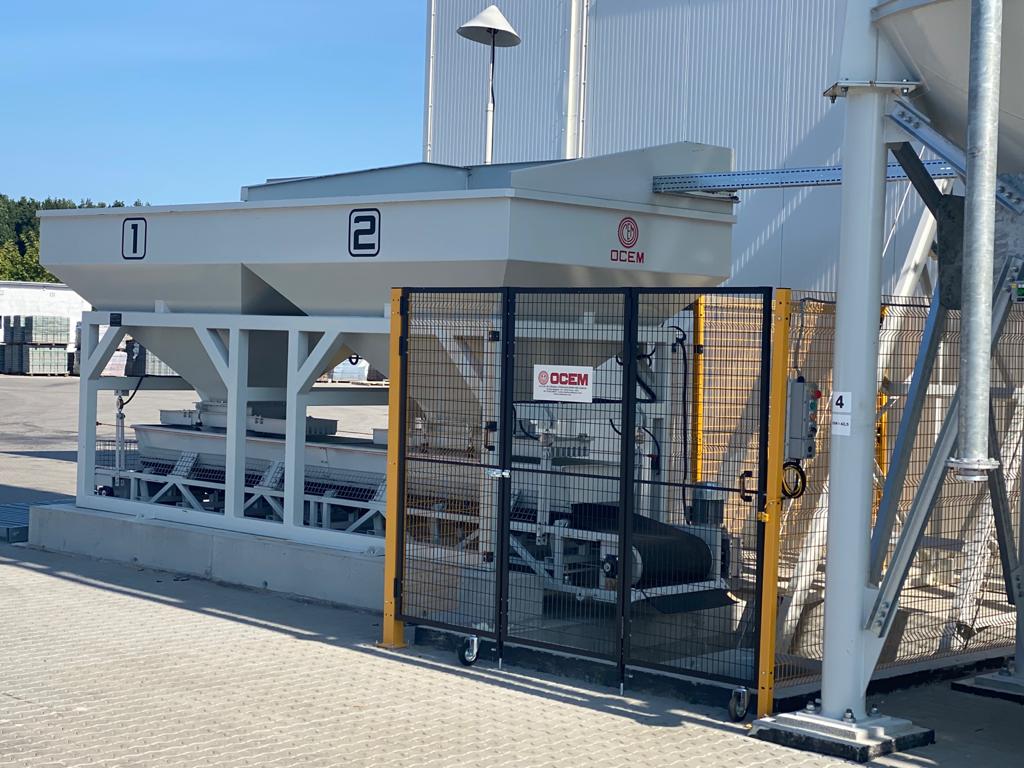

• No. 4 steel hoppers for raw materials, capacity approx. 4.5 m³ each Loading mouth: 2.7 x 2 m (standard version)
• Automatic and programmable aggregates weighing system for aggregates
• Automatic and programmable cement weighing system
• Automatic and programmable water dosing system
• Control panel with SIEMENS S7 PLC and touch-screen operator interface
• Remote control on request

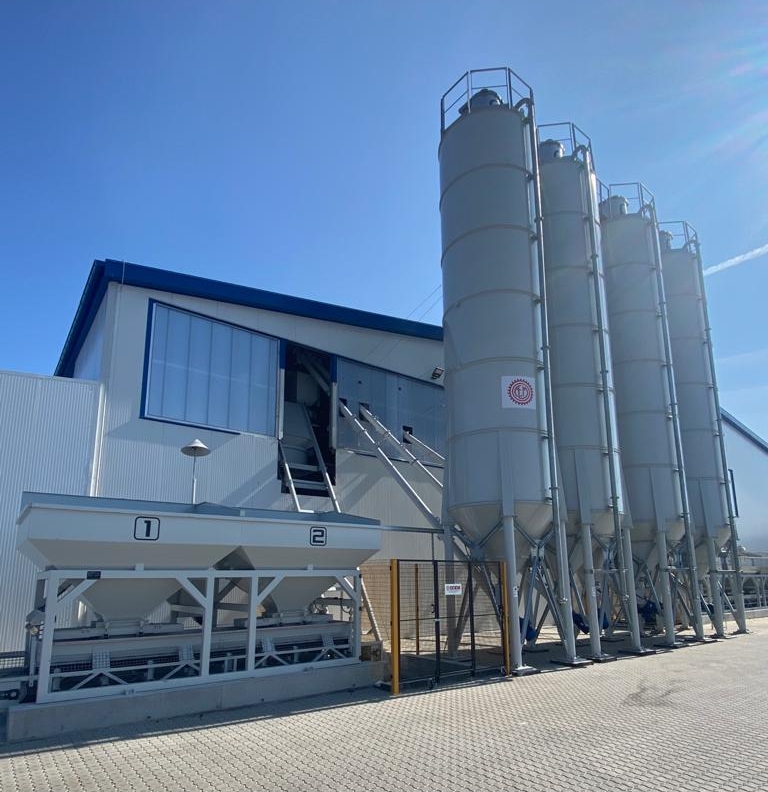

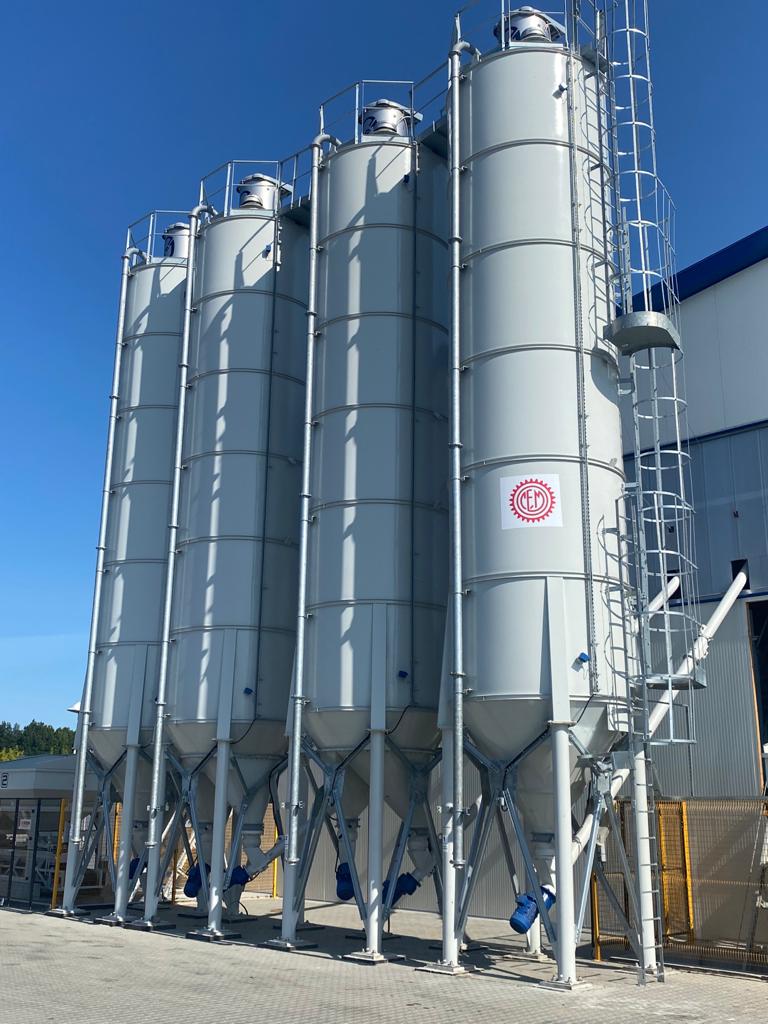

• Cement silos not included and supplied on request
