OPA 400/6

The entry-level hybrid press for single- and double-layer production.

Plant Capacity and level of automation requested

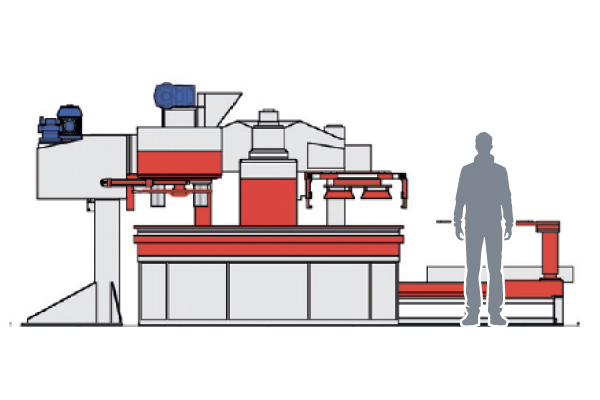

Overall Dimensions (mm)

3975x3465x2390h

Single Layer & Double Layer
Pressing Power

400 Ton.

Stations

6

Production Capacity

350 - 480 m2/8h

Second Layer Charger

Optional

Production per size

20x20 /4
48
25x25 /3
56
30x30 /2
54
33x33 /2
65
40x40 /1
48
30x60 /1
54
esempio-mattonelle-2-single-layer
mattonelle-single-layer-4
mattonelle-double-layer-7
esempio-mattonelle-3-double-layer

OPA 400/6

The entry-level hybrid press for single- and double-layer production.
  • Automatic rotary press with 6 stations for the production of single and double layer tiles
  • Upper and lower frames in high-resistance cast steel, designed for a very long-lasting life
  • Pressing cylinder in forged steel
  • Maximum pressing power: 400 Ton
  • Adjustable pneumatic closing of the moulds on rubber bases
  • High power moulds vibration with vibrator on each station
  • Simultaneous vibration in 3 stations
  • Electronic control board with S7 SIEMENS PLC and colour touch screen panel
  • TE.SE.O. system for remote remote assistance
  • Hydraulic power unit designed to reduce energy consumption
  • Pneumatic power unit in a separated and closed board
  • Automatic planetary doser for first layer STAR425
  • Automatic second layer charging hopper with front scraper (option for double layer tiles production)
  • Hydraulic fresh tiles ejector with adjustable stroke and with clamps (optional) for high thickness tiles
  • Fresh tile ejector carriage mod. SLIM240
  • Automatic plunging spreader for first layer (optional)
  • Stainless steel protections on each station
  • Maximum tile sizes: 500×500/1 or 400×600/1
  • Maximum thickness of the pressed tiles: 60 mm (in double layer version)
  • Installed power: 35 kW approx. with doser and hopper included
