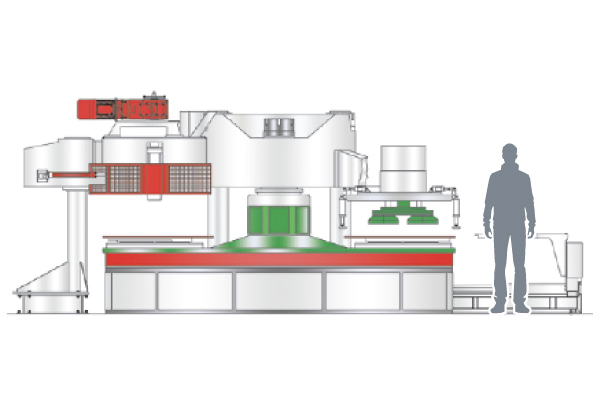

OPA 1400/6

Ideal for managing single and double layer large production volumes with maximum efficiency, biggest slabs sizes and precision. Made to produce the most ambitious projects and the most complex challenges.

Plant Capacity and level of automation requested

Overall Dimensions (mm)

5970x5200x2900h

Single Layer & Double Layer
Pressing Power

1400 Ton.

Stations

6

Production Capacity

800 - 1550 m2/8h

Second Layer Charger

Optional

Production per size

40x40 /4
192
40x60 /3
216
40x80 /3
288
50x50 /2
150
60x60 /2
216
60x120 /1
216
esempio-mattonelle-4-single-layer
esempio-mattonelle-3-double-layer
mattonelle-single-layer-9
mattonelle-double-layer-1

OPA 1400/6

Ideal for managing single and double layer large production volumes with maximum efficiency, biggest slabs sizes and precision. Made to produce the most ambitious projects and the most complex challenges.
  • Automatic rotary press with 6 stations for the production of single and double layer tiles and slabs
  • Upper and lower frames in high-resistance cast steel, designed for a very long-lasting life
  • Pressing cylinder in forged steel
  • Maximum pressing power: 1400 Ton
  • Adjustable pneumatic closing of the moulds on rubber bases
  • High power moulds vibration with vibrator on each station
  • Simultaneous vibration in 3 stations (for single layer) or 2 stations (for double layer)
  • Electronic control board with S7 SIEMENS PLC and colour touch screen panel
  • TE.SE.O. system for remote remote assistance
  • SMARTSTATION electronic system to activate or deactivate each single station
  • Hydraulic power unit designed to reduce energy consumption
  • Pneumatic power unit in a separated and closed board
  • Automatic planetary doser for first layer TAP825
  • Automatic second layer charging hopper with single or (optional) double front scraper
  • Hydraulic fresh tiles ejector with adjustable stroke and with clamps (optional) for high thickness tiles
  • Laser control for the integrity of demoulded tiles
  • Fresh tile ejector carriage mod. SLIM240
  • Air blade for cleaning the extractor carriage and the rubber bases moulds (optional)
  • Automatic plunging spreader for first layer
  • Automatic or semi-automatic lubrication of the table rotation system
  • Stainless steel protections on each station
  • Maximum tile sizes: 600×600/2 or 1200×600/1
  • Maximum thickness of the pressed tiles: 100 mm
  • Installed power: 150 kW approx. doser and hopper included
