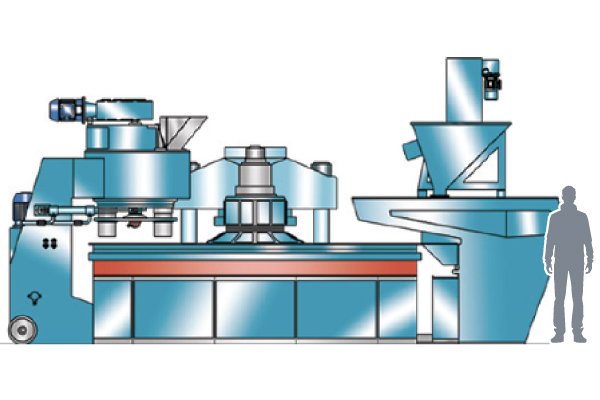

OPA 850

The Premium solution with 8 stations for the best double layer terrazzo tile with microgrits.

Plant Capacity and level of automation requested

Overall Dimensions (mm)

6500x4100x2800h

Double Layer
Pressing Power

300 - 350 Ton.

Prepressing

8 Ton.

Stations

8

Production Capacity

390 - 850 m2/8h

Production per size

20x20 /6
72
25x25 /4
75
30x30 /2
54
33x33 /2
65
40x40 /1
48
50x50 /1
75
40x60 /1
72
60x60 /1
108

OPA 850

The Premium solution with 8 stations for the best double layer terrazzo tile with microgrits.
  • Automatic rotary press with 8 stations for the production of double layer tiles
  • Upper and lower frames in high-resistance cast steel, designed for a very long-lasting life
  • Pressing cylinder in forged steel
  • Maximum pressing power: 300 Ton (standard version) + 8 Ton pre-compression
  • Adjustable pneumatic closing of the moulds on rubber bases
  • High power moulds vibration with vibrator on each station
  • Simultaneous vibration in 4 stations
  • Electronic control board with S7 SIEMENS PLC and colour touch screen panel
  • TE.SE.O. system for remote remote assistance
  • Hydraulic power unit designed to reduce energy consumption
  • Pneumatic power unit in a separated and closed board
  • Automatic planetary doser for first layer STAR425
  • Automatic second layer charging hopper with front scraper
  • Moulds scraper between the first and main pressing station
  • Hydraulic fresh tiles ejector with adjustable stroke and with clamps (optional) for high thickness tiles
  • Fresh tile ejector carriage mod. SLIM240
  • Automatic plunging spreader for first layer (optional)
  • Stainless steel protections on each station
  • Maximum tile sizes: 600×600/1
  • Maximum thickness of the pressed tiles: 60 mm
  • Installed power: 35 kW approx. with doser and hopper included
