OPA 740/6

The best seller on the market: efficient, versatile, reliable. Single layer and double layer in one press only.

Plant Capacity and level of automation requested

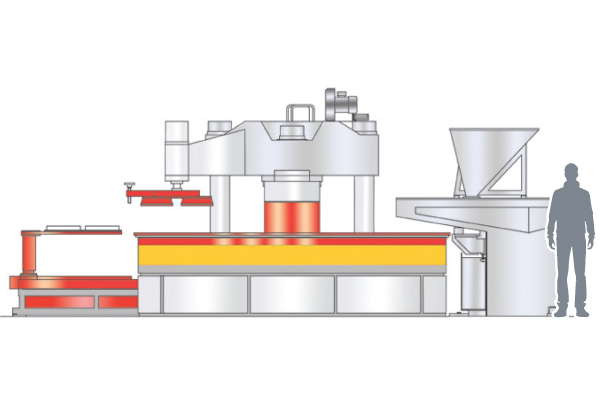

Overall Dimensions (mm)

6540x4540x2700h

Single Layer & Double Layer
Pressing Power

740 Ton.

Stations

6

Production Capacity

570 - 960 m2/8h

Second Layer Charger

Optional

Production per size

20x20 /6
72
25x25 /6
112
30x30 /4
130
33x33 /4
130
40x40 /2
96
30x60 /2
108
50x50 /1
75
60x60 /1
108
40x80 /1
96
mattonelle-single-layer-8
esempio-mattonelle-1-single-layer
mattonelle-double-layer-1
mattonelle-double-layer-3

OPA 740/6

The best seller on the market: efficient, versatile, reliable. Single layer and double layer in one press only.
  • Automatic rotary press with 6 stations for the production of single and double layer tiles
  • Upper and lower frames in high-resistance cast steel, designed for a very long-lasting life
  • Pressing cylinder in forged steel
  • Maximum pressing power: 740 Ton
  • Adjustable pneumatic closing of the moulds on rubber bases
  • High power moulds vibration with vibrator on each station
  • Simultaneous vibration in 4 stations (in single layer tiles production) or in 3 stations (in double layer tiles production)
  • Electronic control board with S7 SIEMENS PLC and colour touch screen panel
  • TE.SE.O. system for remote remote assistance
  • SMARTSTATION electronic system to activate or deactivate each single station
  • Hydraulic power unit designed to reduce energy consumption
  • Pneumatic power unit in a separated and closed board
  • Automatic planetary doser for first layer STAR625 or TAP625
  • Automatic second layer charging hopper with single or (optional) double front scraper (for double layer production)
  • Hydraulic fresh tiles ejector with adjustable stroke and with clamps (optional) for high thickness tiles
  • Laser control for the integrity of demoulded tiles

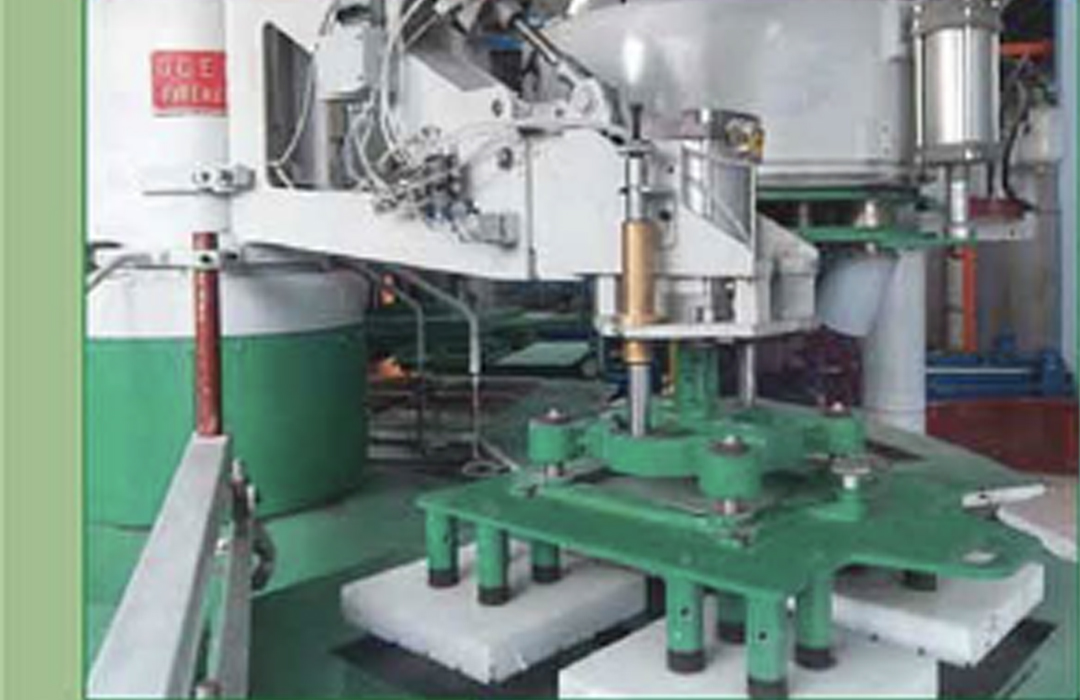

  • Fresh tile ejector carriage mod. SLIM240
  • Air blade for cleaning the extractor carriage and the rubber bases moulds (optional)
  • Automatic plunging spreader for first layer
  • Automatic or semi-automatic lubrication of the table rotation system
  • Stainless steel protections on each station
  • Maximum tile sizes: 333×333/4 or 600×600/1
  • Maximum thickness of the pressed tiles: 60 mm (standard version for double layer)
  • Installed power: 70 kW approx. doser and hopper included
